LUXCOMB LED PANELS - research & Development
Headed by the French CEO, in August 2013, LUXCOMB decided to produce an extremely efficient range of LED panels, a superb energy saving solution that can be used worldwide proven by the relevant required certifications.
All these adjustments have been made in support of companies and clients who are environmental conscious and contribute to saving the planet by reducing the CO2 output.
LUXCOMB LED Panels are the perfect solution for excellent energy saving and reduced maintenance, providing true value for money without the compromise of light quality.
Using the Professional series of LUXCOMB Panels create tasteful design in the environment where combining creativity with productivity becomes a pleasure !
LUXCOMB LED Panels have an expected lifetime of up to 80,000 hours which means no more costly lamp replacement or disruption to the workplace due to ongoing maintenance of traditional lighting
We offer an extensive range of lumen output and efficacy that covers all potential LUX level requirements for most lighting designs. For example, we can achieve 300, 500, 600, 750 lux per square meter, without the need of altering the position of the LED panels. This is achieved by altering the output of the LED panels. By means of our professional design we can assure that the lighting levels meet any local guidelines and recommendations.
LUXCOMB LED Panels are ideal for offices, retail facilities, hotels, NHS trusts and educational Establishments.
LUXCOMB Performance Series LED Panel : the best Quality/Price solution for efficient light !
The LUXCOMB LED Panel Performance Series is the perfect design for high efficiency light output where ceiling void depths are limited. With only 45 mm depth required, they can easily be installed in recessed ceiling systems. This new innovative Solution produces a very efficient high light output due to applied technology.
This new LED Panel Performance Series is suitable for the majority of applications (conference rooms, universities, classrooms, theatres, corridors and communal areas...)
With a lumen efficacy of 88 lm/w and a maximum power input of 45W the Performance range is more efficient than conventional side-emitting LED Panels.
SPECIFICATIONS
- Voltage : 85 to 265V AC
- Resistant to shock and vibration
- Excellent energy saving
- Flicker free and instant full output lighting
- Operating Temperature : -10 to 40 °C
- Photometric data and full lighting design service available
PROFESSIONAL
- 5 years warrranty
- Power factor > 0.97
- Performance : 115-125 Lm/W[1]
- LED Chip : SMD 140-160 Lm/w[1]
- Lifetime : LM70 80 000 hours
- UL approval #
Optional : FV-0 fire rated in accordance with UL94 and IEC60707
PERFORMANCE
- 3/5 years warrranty[2]
- Power factor > 0.90
- Performance : 87-93 Lm/W[1]
- LED Chip : SMD 120-140 Lm/w[1]
- Lifetime : LM70 70 000 hours
Optional [2] : 5 years warranty possible subject to usage application. Please consult your distributor.
Professional SERIES 300x300
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1130 | PRO3-PW8-GW0-E1-0 | 160 | 4000 | 83 | 15 | 1520 | 0.6/1.6 |
Professional SERIES 116x-PRO - SERIE 595X595 (T-beam spacing 600 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1160 | PRO6-PW8-GW0-E2-0 | 160 | 4000 | 83 | 27 | 3150 | 2.65/3.95 |
| 1161 | PRO6-PW8-GW0-E3-0 | 160 | 4000 | 83 | 32 | 3650 | 2.65/3.95 |
| 1162 | PRO6-PW8-GW0-D4-0 | 160 | 4000 | 83 | 36 | 4000 | 2.65/3.95 |
| 1163 | PRO6-PW8-GW0-E4-0 | 160 | 4000 | 83 | 42 | 4650 | 2.65/3.95 |
Professional SERIES 117x-PRO - SERIE 620X620 (T-beam spacing 625 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1170 | PRO6-PW8-GW7-E2-0 | 160 | 4000 | 83 | 23 | 2700 | 2.86/4.26 |
| 1171 | PRO6-PW8-GW7-E3-0 | 160 | 4000 | 83 | 27 | 3250 | 2.86/4.26 |
| 1172 | PRO6-PW8-GW7-D4-0 | 160 | 4000 | 83 | 30 | 3600 | 2.86/4.26 |
| 1173 | PRO6-PW8-GW7-E4-0 | 160 | 4000 | 83 | 34 | 4150 | 2.86/4.26 |
| 1174 | PRO6-PW8-GW7-E5-0 | 160 | 4000 | 83 | 42 | 4850 | 2.86/4.26 |
Professional SERIES 118x-PRO - SERIE 625X625 (T-beam spacing 630 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1180 | PRO6-PW8-GW8-E2-0 | 160 | 4000 | 83 | 23 | 2700 | 2.91/4.34 |
| 1181 | PRO6-PW8-GW8-E3-0 | 160 | 4000 | 83 | 27 | 3250 | 2.91/4.34 |
| 1182 | PRO6-PW8-GW8-D4-0 | 160 | 4000 | 83 | 30 | 3600 | 2.91/4.34 |
| 1183 | PRO6-PW8-GW8-E4-0 | 160 | 4000 | 83 | 34 | 4150 | 2.91/4.34 |
| 1184 | PRO6-PW8-GW8-E5-0 | 160 | 4000 | 83 | 42 | 4850 | 2.91/4.34 |
Professional SERIES 111x-PRO - SERIE 1200X300
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1110 | PRO1-PW8-GW0-E2-0 | 160 | 4000 | 83 | 30 | 3250 | 2.1/3.4 |
| 1111 | PRO1-PW8-GW0-D4-0 | 160 | 4000 | 83 | 37 | 4000 | 2.1/3.4 |
Professional SERIES SPECIAL SERIES (1270X270X12, 1453X270X12, 1825X270X12)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1121 | SLIM-WH-1270x270 | 160 | 4000 | 95 | 36 | 2300 | 5.5/6 |
| 1122 | SLIM-WH-1543x270 | 160 | 4000 | 95 | 36 | 2400 | 8/8.5 |
| 1123 | SLIM-WH-1825x270 | 160 | 4000 | 95 | 45 | 3000 | 10/10.5 |
Performance SERIES 300x300
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1135 | PER3-PW8-GW0-E1-0 | 160 | 4000 | 83 | 15 | 1200 | 0.56/1.55 |
Performance SERIES 116x-PER - SERIE 595X595 (T-beam spacing 600 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1165 | PER6-PW8-GW0-E3-0 | 160 | 4000 | 83 | 34 | 3000 | 2.55/3.85 |
| 1166 | PER6-PW8-GW0-D4-0 | 160 | 4000 | 83 | 39 | 3400 | 2.55/3.85 |
| 1167 | PER6-PW8-GW0-E4-0 | 160 | 4000 | 83 | 45 | 4000 | 2.55/3.85 |
Performance SERIES 117x-PER - SERIE 620X620 (T-beam spacing 625 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1175 | PER6-PW8-GW7-E3-0 | 160 | 4000 | 83 | 27 | 2560 | 2.86/4.26 |
| 1176 | PER6-PW8-GW7-D4-0 | 160 | 4000 | 83 | 30 | 2850 | 2.86/4.26 |
| 1177 | PER6-PW8-GW7-E4-0 | 160 | 4000 | 83 | 34 | 3250 | 2.86/4.26 |
| 1178 | PER6-PW8-GW7-E5-0 | 160 | 4000 | 83 | 42 | 3850 | 2.86/4.26 |
Performance SERIES 118x-PER - SERIE 625X625 (T-beam spacing 630 mm)
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1185 | PER6-PW8-GW8-E3-0 | 160 | 4000 | 83 | 27 | 2560 | 2.91/4.34 |
| 1186 | PER6-PW8-GW8-D4-0 | 160 | 4000 | 83 | 30 | 2850 | 2.91/4.34 |
| 1187 | PER6-PW8-GW8-E4-0 | 160 | 4000 | 83 | 34 | 3250 | 2.91/4.34 |
| 1188 | PER6-PW8-GW8-E5-0 | 160 | 4000 | 83 | 42 | 3850 | 2.91/4.34 |
Performance SERIES 111x-PER - SERIE 1200X300
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight net/gross (kg) |
|---|---|---|---|---|---|---|---|
| 1115 | PER1-PW8-GW0-E3-0 | 160 | 4000 | 83 | 37 | 3000 | 2/3.3 |
| 1116 | PER1-PW8-GW0-E4-0 | 160 | 4000 | 83 | 49 | 3400 | 2/3.3 |
Panel 300x300
Panel Standard

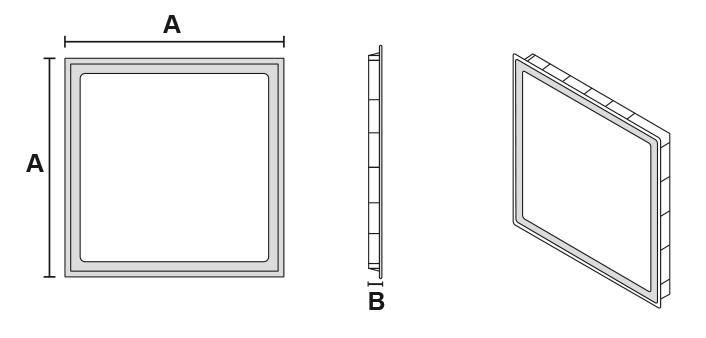

| AxAxB | 595x595x45 mm | 603x603x53 mm | 620x620x45 mm | 625x625x45 mm |
| T-beam spacing | 600x600 mm | 2x2 ft | 625x625 mm | 630x630 mm |
| standard metric (600mm) | standard anglo-saxon (2ft) | world | world |

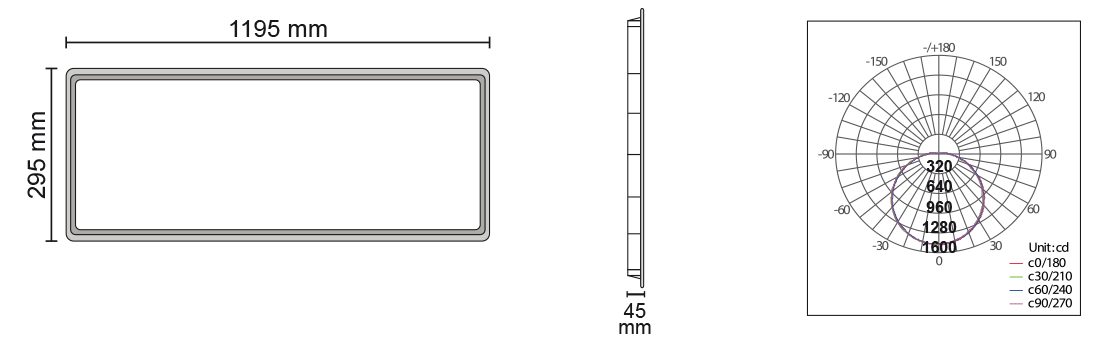

Panel 300x1200
- Dimmable drivers available with 1-10V analog signal option for all models E2, E3, D4, E4
[1] Following the Ra and color of the Chip
* Colour Temperature range is available in 2700-6500K, for more details please contact us
