LUXCOMB LED SPOTS range 72 & 105
Striving on keeping pace with up-to-date challenges, LUXCOMB put all it’s skills to the test in creating a line dedicated to retail business. In order to give new life to retailer shops, we created a range of high performance spots with a unique and original design.
These spots ranging between 72 to 105 are designed in the same style which allows variation and great flexibility when composing the layout of a store, meeting both architectural constraints or respecting the initial structure. Compared to initial AR111 installations, LUXCOMB solution gives you the opportunity of benefiting from your entire investment.

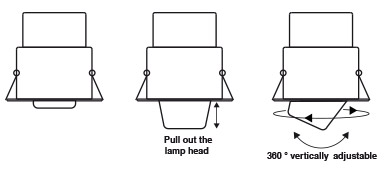

Unlike most adjustable light systems, the technical advantage of the LUXCOMB range 72 and 105 has adjustable orientation system as well and a 15mm elongation of the lamp head, which allows the light to be pointed in different directions without any loss of brightness.
LED Spot Range 72 recessed
The recessed LED Spot range 72 ideally replaces halogen AR111-35W reducing the power consumption per 4 spots of 1 kW per operating day with a lifespan at least 10 times longer than the halogen Spots.
The recessed LED Spot range 72 is available with one to three light sources inside the structure. The Optics are individually extractable and adjustable providing total liberty of expression for the user.

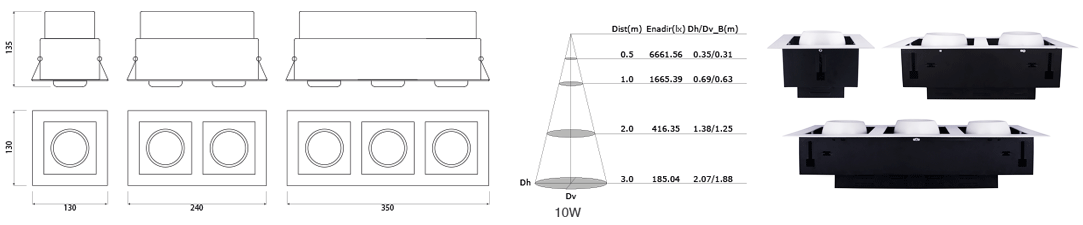

Deco/Optimae SERIES 72 - 1 TO 3 SPOTS
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| 1302 | SPOT-WW8-IW0-010-060 | 63 | 2700 | 80+ | 10 | 600 | 0.75 | 130x135x130 |
| 1303 | SPOT-WW8-IW0-020-060 | 63 | 2700 | 80+ | 20 | 1200 | 1.17 | 240x135x130 |
| 1304 | SPOT-WW8-IW0-030-060 | 63 | 2700 | 80+ | 30 | 1800 | 1.6 | 350x135x130 |
LED Spot Range 105 recessed
The recessed LED Spot range 105 ideally replaces halogen AR111-50W reducing the power consumption per 4 spots of 2 kW per operating day with a lifespan at least 10 times longer than the halogen Spots.
The recessed LED Spot range 105 solution has the same characteristics as range 72 but more powerful output.

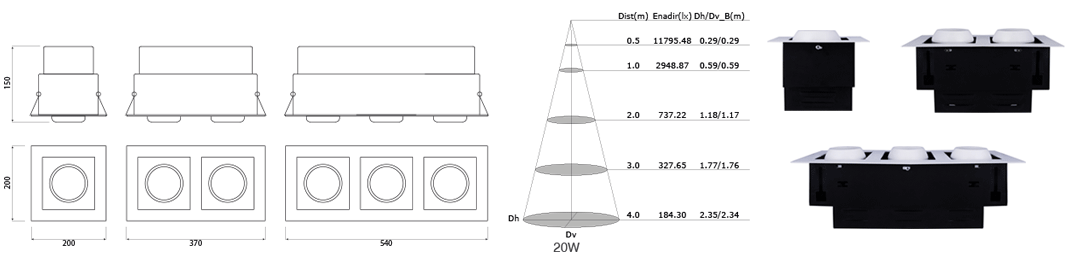

Deco/Optimae SERIES 105 - 1 TO 3 SPOTS
| Model | Product number | Angle (degrees) | CCT (K)* | Ra | Power (W) | Lumen (lm) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|
| 1305 | SPOT-WW8-IW1-020-060 | 63 | 2700 | 80+ | 20 | 1200 | 1.14 | 200x150x200 |
| 1306 | SPOT-WW8-IW1-040-060 | 63 | 2700 | 80+ | 40 | 2400 | 2.25 | 370x150x200 |
| 1307 | SPOT-WW8-IW1-060-060 | 63 | 2700 | 80+ | 60 | 3600 | 3.25 | 540x150x200 |
Professional Series RA 90 and 97 BRIDGELUX. Please contact us for more information.
* Colour Temperature range is available in 2700-6500K, for more details please contact us
