LUXCOMB recessed LED HIGH BAY 60-100W

LUXCOMB CE  LUXCOMB ROHS COMPLIANTLUXCOMB CB LUXCOMB IP44

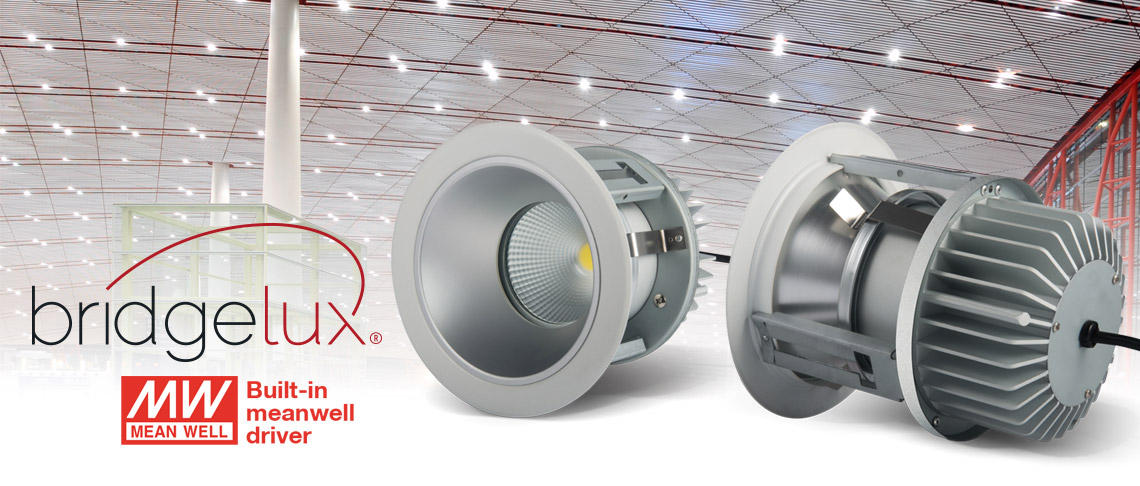

LUXCOMB recessed LED HIGH BAY 60-100W

Recessed High Bays 60W-169mm and 100W-270mm is designed to replace the 150W and 250W metal halid or HID downlight, the superior COB solution and pure aluminum heat sink enables the lumen efficacy higher to 90-95LM/W with excellent thermal management in one-piece structure by cold-forging technology.

Specifications

  • 5 year warranty
  • Excellent thermal management availab
  • Bridgelux COB technology LED high performance
  • Meanwell driver CEN-100
  • Power factor > 0.95
  • Performance COB : 120 Lm/W
  • Ra 80 and 90 possible
  • IP44 rated enclosure
  • Lifetime : LM70 40 000 hours
  • Beam Angle 60 degree
  • Anti-glare design, low UGR
  • Voltage : 90 to 295V AC
  • Resistant to shock and vibration
  • Excellent energy saving
  • Flicker free and instant full output lighting
  • Recessed, fixation by means of steel fasteners
  • Photometric data and full lighting design service available

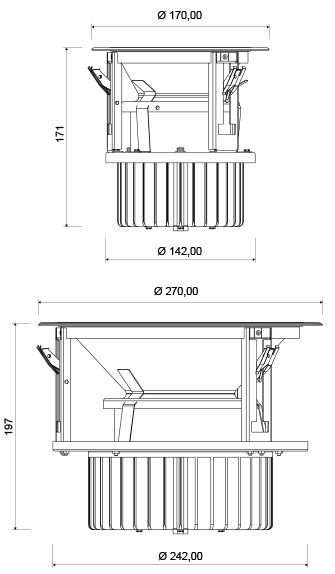

LUXCOMB recessed LED  HIGH BAY 60-100W Dimensions

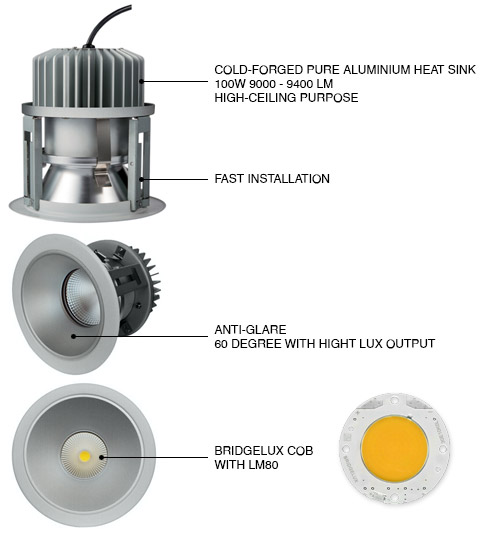

LUXCOMB recessed LED  HIGH BAY 60-100W spec

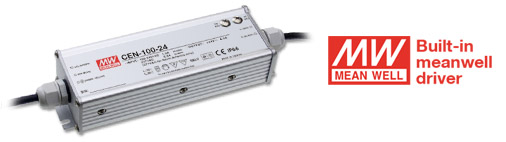

LUXCOMB recessed LED  HIGH BAY 60-100W Driver Meanwell



Professional SERIES 100W

Model Product number Angle(degrees) CCT(K)* Ra Power(W) Lumen(lm) Weight(kg) Ø Hole (mm) Dimensions(mm)
1571 HIGH BAY RECESSED - 100W 8 30 60 3000 80+ 100 8800 2.56 Ø 250 Ø 270x197
1572 HIGH BAY RECESSED - 100W 8 40 60 4000 80+ 100 9200 2.56 Ø 250 Ø 270x197

Professional SERIES 60W

Model Product number Angle(degrees) CCT(K)* Ra Power(W) Lumen(lm) Weight(kg) Ø Hole (mm) Dimensions(mm)
1561 HIGH BAY RECESSED - 60W 8 30 60 3000 80+ 60 5350 1.6 Ø 150 Ø 170x175
1562 HIGH BAY RECESSED - 60W 8 40 60 4000 80+ 60 5600 1.6 Ø 150 Ø 170x175

* Color Temperature range is available in 2700-6500K, for more details please contact us
